Qwinout Drone Hexacopter 6 axle Aircraft
Qwinout Drone Hexacopter 6 axle Aircraft
Product details
| Marke | QWinOut |
|---|---|
| Videoaufnahmeauflösung | 256 k |
| Medientyp | Micro SD |
| Material | metal |
| Sind Batterien enthalten? | Nein |
Product details
About this item

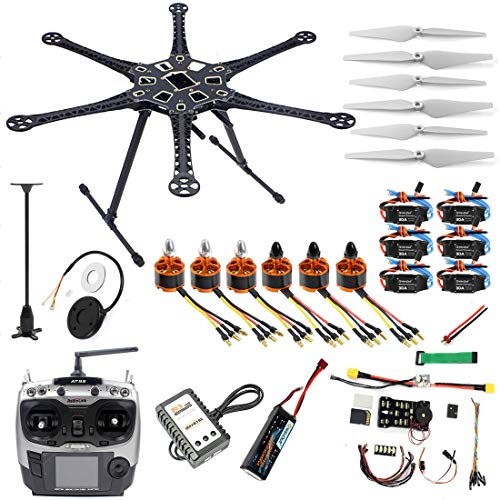

Hardware Specifications: processor 1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit 2.frequency: 168MHZ, 256K RAM 3.32 STM32F103 backup coprocessor sensor 1.L3GD20 3-axis digital gyroscope 16 2.LSM303D 3-axis accelerometer 14 / Magnetometer 3.MPU6000 6-axis accelerometer / magnetometer 4.MS5611 precision barometer interface 1.5 high voltage compatible UART 1, 2 with hardware flow control 2.2 CAN 3.DSM / DSM2 / DSM-X satellite receiver compatible input 4.Futaba SBUS compatible inputs and outputs 5.PPM Signal Input 6.RSSI (PWM or voltage) Input 7.I2C 8.SPI 9.3.3 and 6.6VADC input 10.External MICRO USB Interface Package including: 1 set HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear 3 Pair JMT 920KV CW CCW Brushless Motor 6 pcs 30A Brushless ESC Speed Controller 3 pair 9443 CW CCW Propellers 1 pcs PIXHAWK PIX PXI PX4 Flight Controller 1 pcs 6M GPS with Compass L5883 25cm Cable 1 pcs DJI GPS Folding Antenna Mount Holder Metal 1 pcs Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver TX &RX 18 pcs 3.5mm Bullet Connector ( banana plug ) 1 pcs Hook & Loop Fastening Tape 1 pcs T Plug Male Connector 1 pcs IMAX RC B3 Pro Compact Balance Charger 1 pcs 11.1V 4400MAH 30C 3S1P battery
| Herstellerreferenz | M08618-T |
|---|---|
| Auslaufartikel (Produktion durch Hersteller eingestellt) | Nein |
| Zusammenbau nötig | Nein |
| Batterien notwendig | Nein |
| Batterien inbegriffen | Nein |
| Material | metal |
| Fernsteuerung enthalten | Ja |
| Anzahl Frequenzbänder Funkfernsteuerung | 9 |
